Product guide
Everything you need to know.
Overview, benefits & specifications

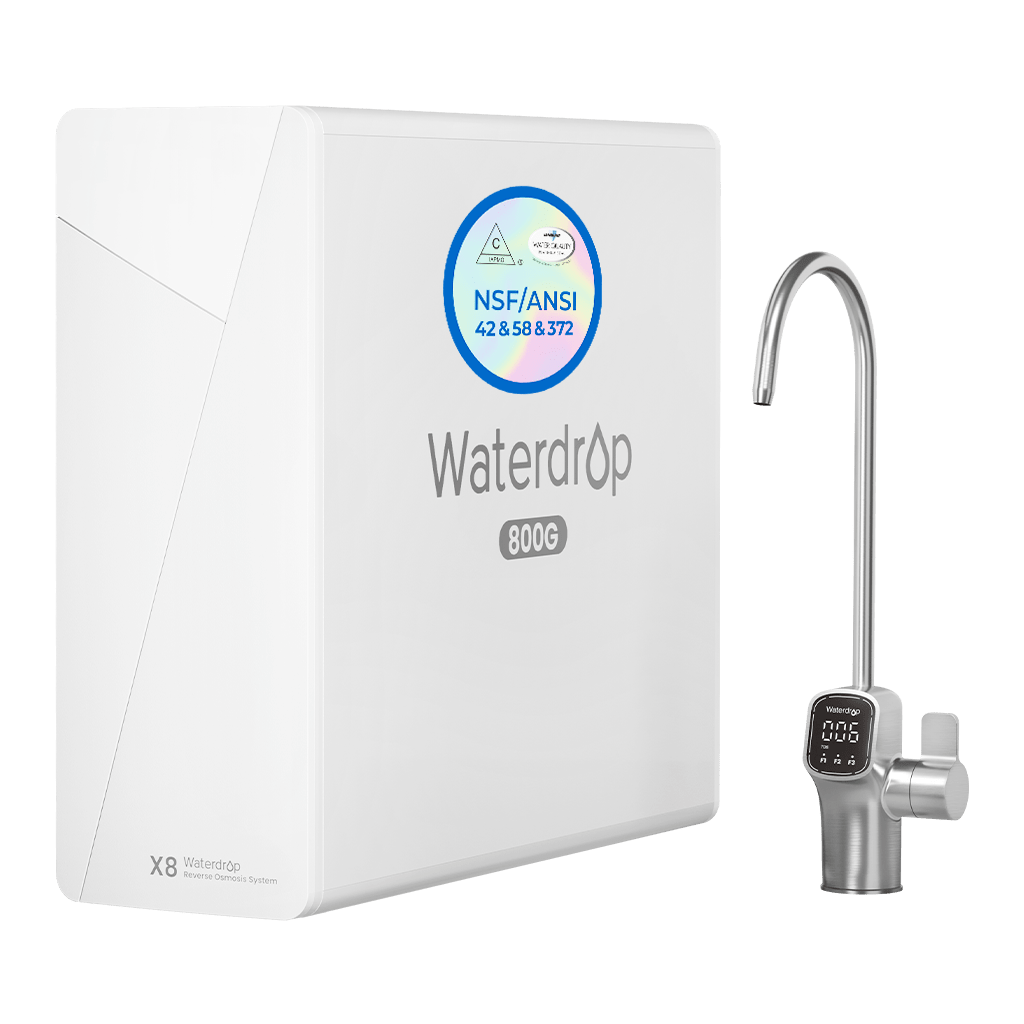

The Waterdrop X8 is an 800 GPD tankless undersink reverse-osmosis system with nine-stage filtration and a smart display faucet.
Key benefits
- 800 GPD capacity
- 9-stage filtration
- 0.0001 μm reverse-osmosis membrane
- 2:1 pure-to-drain ratio
- Smart display faucet

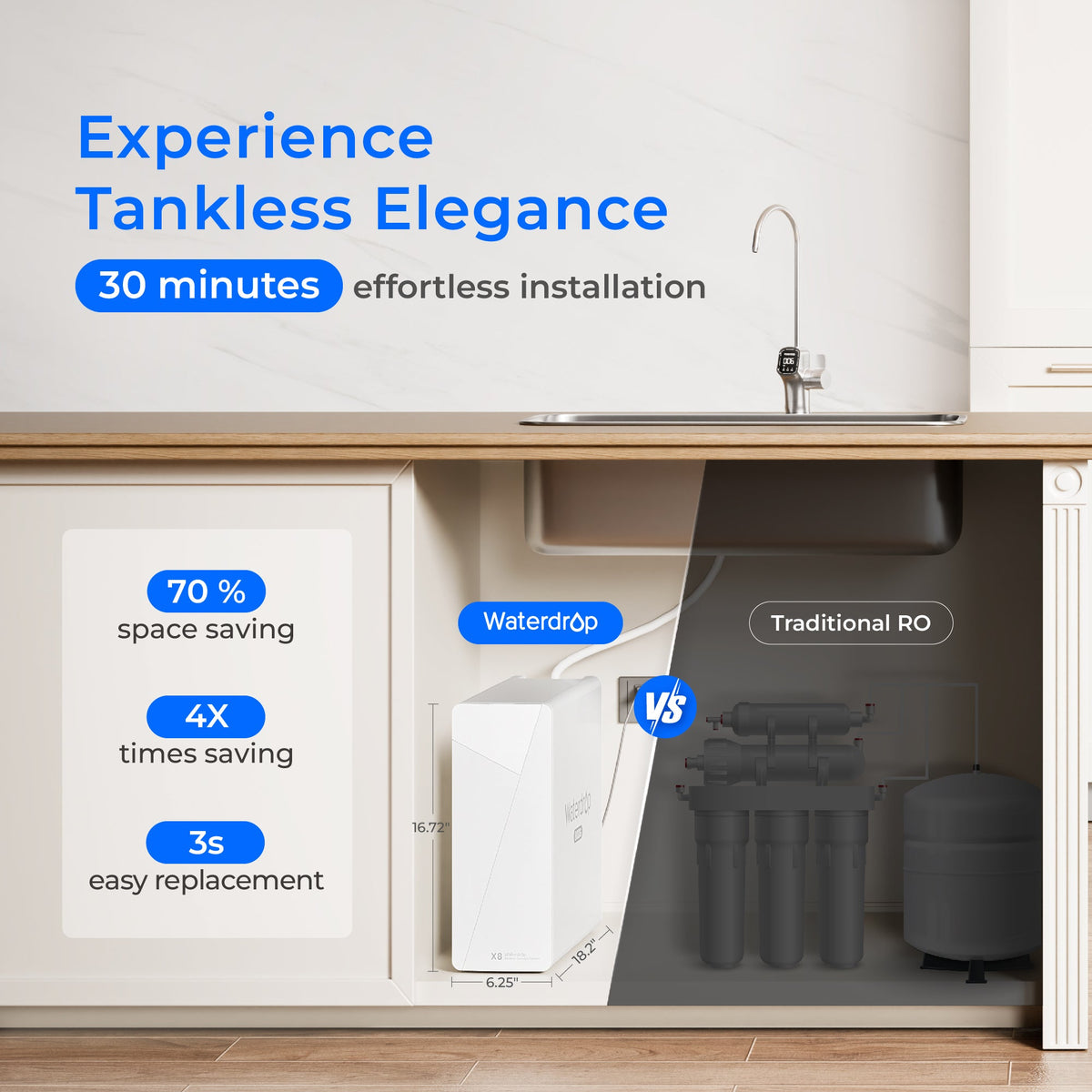

- Tankless design
Specifications
- Model: WD-X8
- Capacity: 800 GPD
- Filtration: 9 stages
- Pure-to-drain ratio: 2:1
- Dimensions: 18.2 × 6.25 × 16.72 in
- Weight: 35.44 lb
- Certification: NSF/ANSI 42, 58, and 372
What is included
- X8 system
- X8 filters
- Smart faucet
- Power adapter
- Red 1/4 in PE tubing
- Feed-water adapter and inlet tubing
- Drain saddle
- Reference sticker
- Teflon tape
- Lock clip
Replacement filters
- F1G: up to 12 months
- F2: up to 6 months
- X8-F3: up to 24 months
Installation and use
Install under the sink according to the model-specific Waterdrop manual. Confirm cabinet clearance, feed-water, drain, power, tubing, and faucet requirements before installation.
What’s included
System components, filters, connection hardware, and documentation vary by model. Refer to the “What is included” section above and confirm the package contents before installation.
Installation & use
Follow the included manufacturer manual. Confirm feed-water pressure, temperature, under-sink clearance, power availability where required, and local plumbing rules. Use a qualified installer whenever local codes require one.
Shipping
Available shipping services, cost, and estimated delivery dates are calculated at checkout. Inspect the package promptly after delivery and retain all packaging until installation is complete.
FAQ
How do I select the right system?
Compare installation location, rated capacity, filtration type, dimensions, and power requirements.
When should filters be replaced?
Replacement timing depends on model, water quality, and usage. Follow the system indicator and manufacturer schedule.
Can I install it myself?
Many systems are designed for straightforward installation, but professional installation is recommended when required by code or when plumbing modifications are needed.
